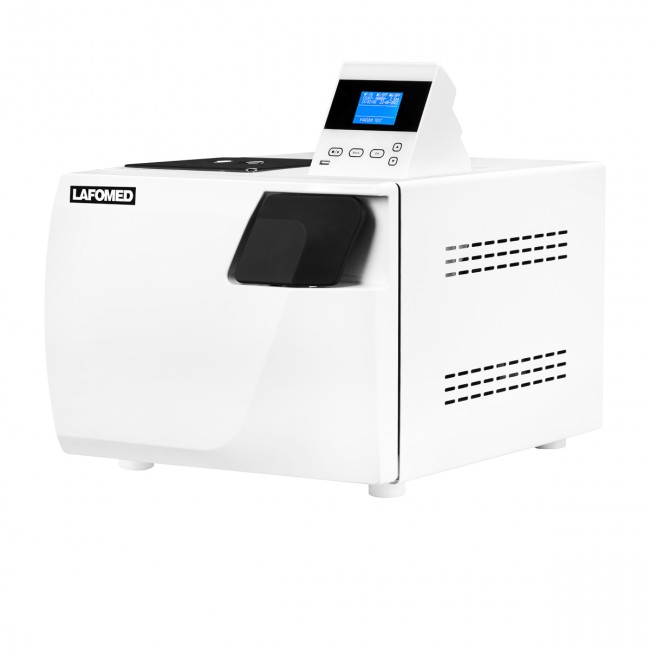

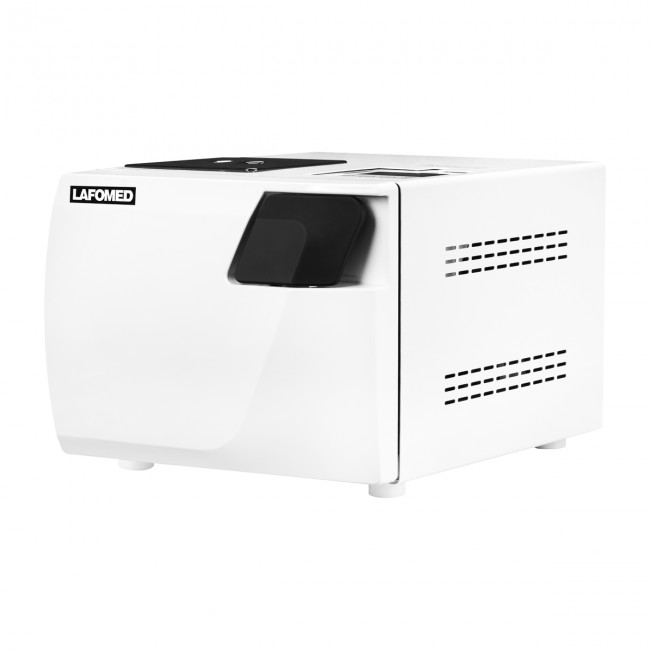

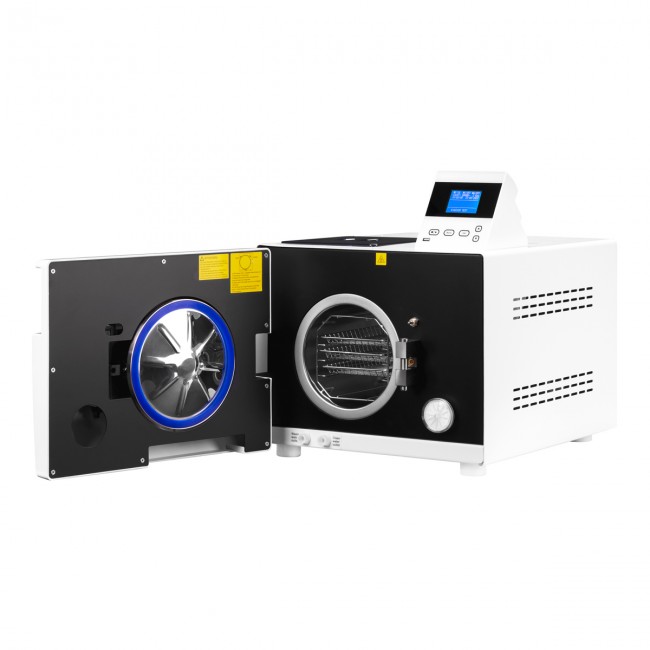

Lafomed Compact Line LFSS18AD autoclave with printer 18 L class B medical (Product Code: 122514)
Description of Lafomed Compact Line LFSS18AD autoclave with printer 18 L class B medical
High quality autoclaves
Lafomed is a brand of high-class autoclaves that have gained recognition in over 50 countries around the world. The autoclaves meet all medical standards and directives. These devices are characterized by low failure rate. Their microprocessors use the latest generation of electronic modules. Lafomed autoclaves are characterized by high efficiency and durability, and their operation is simple and intuitive.
INTENDED USE:
The autoclave, model LFSS18AD is designed for sterilization of invasive medical devices. The device allows to prevent cross-infection. The autoclave is especially designed for hospital departments, dental, ophthalmological and biological research institutes. It is designed for sterilization of surgical instruments, dental tools, syringes, etc. It is used for sterilization of packaged (single- and multi-layer) and unpackaged solid products, porous products and hollow objects in accordance with EN 13060:2004+A2:2010. The autoclave can also be used for non-medical and veterinary applications.
Warning: The device is not intended for sterilizing liquid substances.
Top-class autoclave
The Lafomed Compact Line autoclave is particularly recommended for hospital departments, dentistry and ophthalmology, as well as for Biology Institutes conducting research projects. It is perfect for hairdressing and beauty salons, tattoo studios, and aesthetic medicine salons. The device is designed to sterilize both medical and non-medical instruments. ActiveBeautyStore, manufactured on special request, has features that are not found in other autoclaves, which makes this product particularly unique. Sterilization with the highest medical class B autoclave ensures full effectiveness and safety.
Functionality you will appreciate
It is a compact device combining an 18-liter autoclave with a built-in thermal printer . It has an LCD display and a USB port that allows you to connect a data carrier to save the results of the cycle. It has 10 fully automatic programs ; 7 sterilization programs, 2 test programs and an autoclave cleaning program. Additionally, it also has a user program function , which allows complete freedom in selecting parameters. The menu is intuitive, and the user-friendly interface is in Polish. The preheating and heat maintenance functions will also be useful. The Lafomed Compact Line autoclave is characterized by the availability of fast sterilization programs, with the possibility of controlling the drying time. The shortest sterilization program together with drying lasts only 7 minutes. The device has a built-in tank for clean (distilled) water, which is used for sterilization, as well as a tank for used water, with the possibility of draining from the front of the device. The self-diagnosis system will effectively protect against damage and will maintain the durability of the device. Additional safety will be provided by the double door lock system. What sets it apart from other Lafomed autoclaves is the extremely large capacity of the clean and used water tanks - up to 2.5 liters! Thanks to this, we will not have to add and empty water frequently.
Automatic sterilization programs
| Sterilization program | Pressure | Total cycle time* |
| 121° Uniform | 110 kPa | 23 min |
| 121° Porous | 110 kPa | 27 min |
| 121° Concave | 110 kPa | 30 min |
| 134° Uniform | 210 kPa | 7 min |
| 134° Porous | 210 kPa | 11 min |
| 134° Concave | 210 kPa | 14 min |
| 135° Prions | 210 kPa | 29 min |
*Refers to the time after the device has warmed up.
36 month warranty
The Lafomed Compact Line autoclave is covered by a 36-month warranty. It is worth noting that the warranty does not depend on the number of cycles used by the autoclave . This option applies to devices purchased from 17.05.2024 . Additionally, a technical passport is included in the set for free.
Nationwide network of authorized LAFOMED service centers
We are pleased to inform you about the introduction of changes in the servicing of LAFOMED autoclaves. In order to meet the requirements and needs of our customers, from September 2, 2024, we are launching a nationwide network of authorized LAFOMED service centers. The services are now available in every province, where you will be able to leave your device for repair or inspection.
Authorized service centers offer:
- annual inspections
- performing necessary warranty and post-warranty repairs
- possibility of performing the above services at the client's place (on site) *
- replacement devices for the duration of repairs *
- fast and effective action
Please contact your central service to find out where your nearest service point is.
* Service available at selected sites.
Specification:
| Class B medical | This is the highest class of autoclaves that allow for the most effective sterilization of unpackaged and packaged items, regardless of the type of tools. |
| High quality workmanship | The autoclave is manufactured according to ISO 13485 and has a CE 1023 certificate. It also meets the requirements of the European Standard BS EN 13060:2014+A1:2018. |

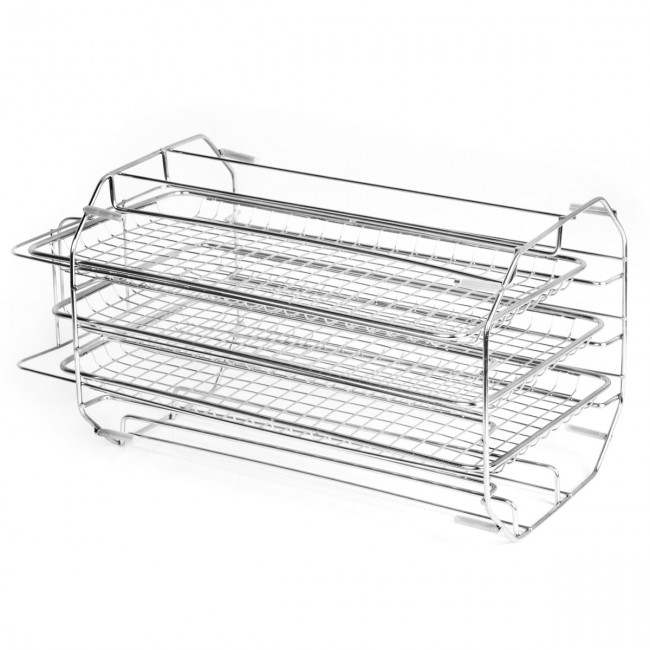

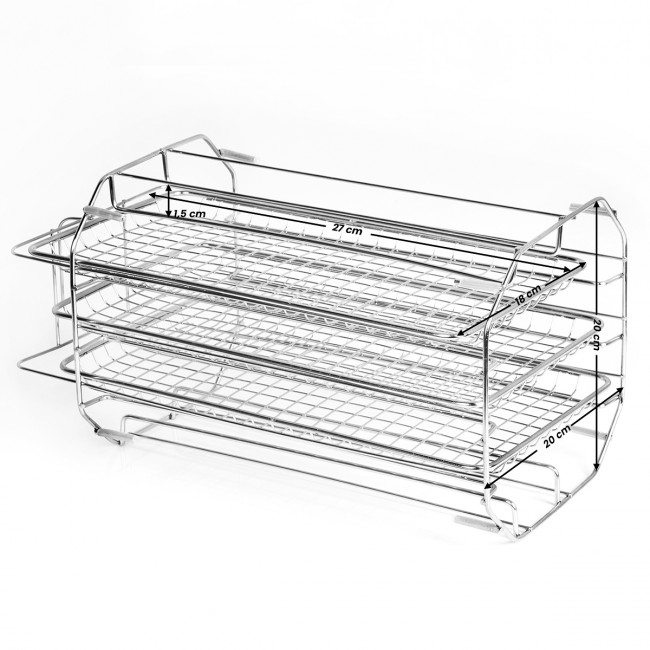

| Capacity 18 L | The 18-liter autoclave is perfect for a beauty or tattoo parlor, for example. We can put a grid with three trays in the chamber. |

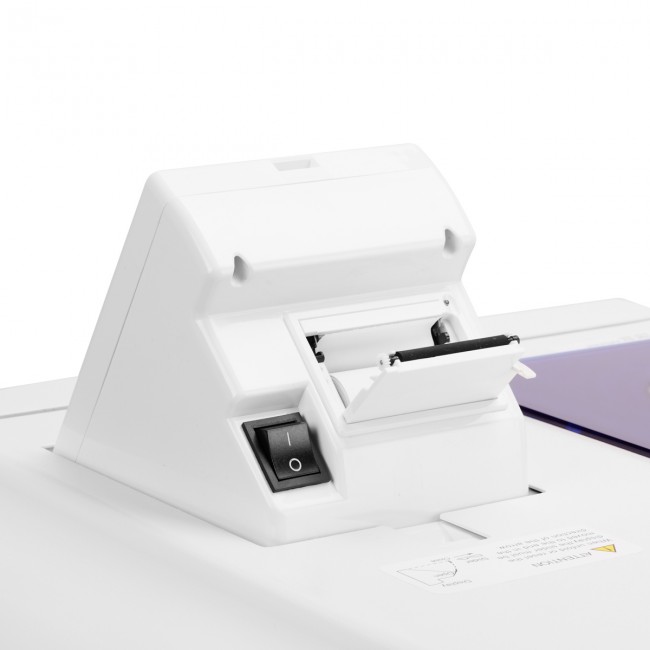

| Built-in printer | No ink required thanks to the use of thermal paper. |
| Sterilization of loose or packaged instruments | A class B autoclave allows for the sterilization of both unpackaged and packaged instruments (solid or hollow). |

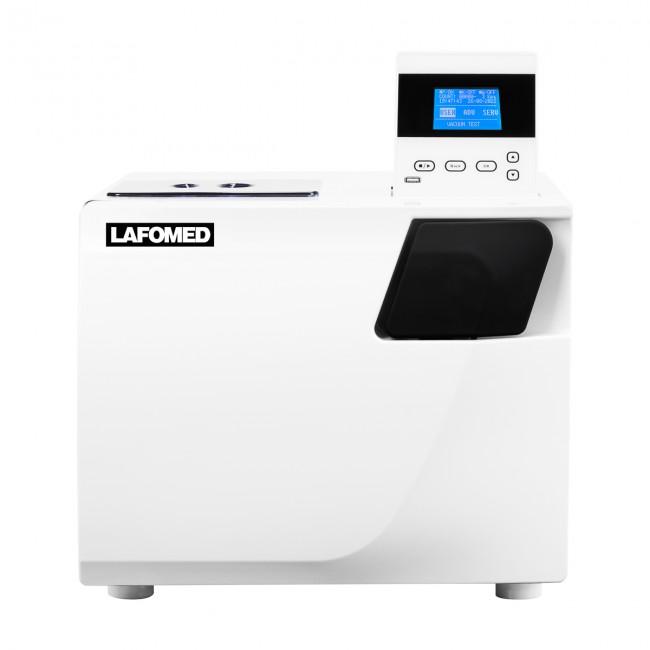

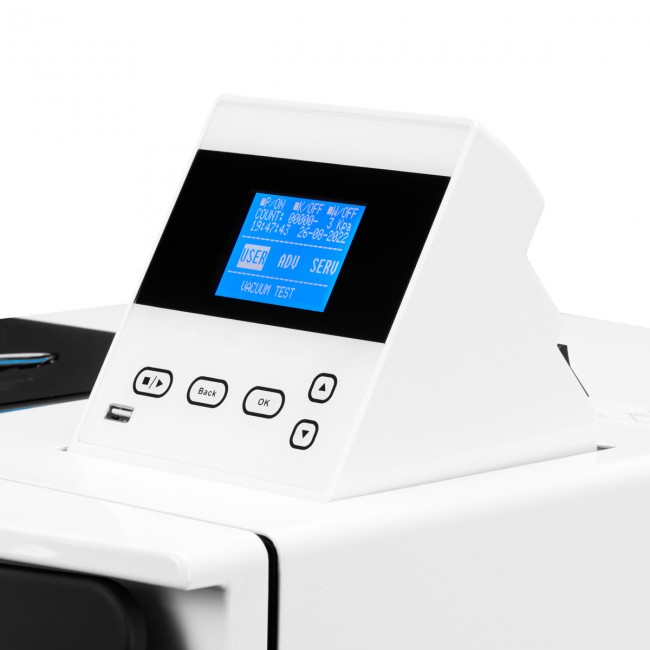

| LCD display | Indicates time, temperature, pressure and cycle progress. |
| Easy and efficient operation | The intuitive menu allows for quick program selection or parameter setting, and the user-friendly interface is in Polish . |
| 10 automatic programs | 7 sterilization programs, 2 test programs; Bowie & Dick and vacuum test, and an autoclave cleaning program. |
| User program | The autoclave allows you to define your own sterilization program and set all parameters. |
| Cleaning program | Designed for cleaning the autoclave. Particularly indicated when the message "CLEANING REQUIRED" appears. |
| USB port | Save your data digitally on a flash drive and don't worry about losing or destroying the valuable evidence you need. |
| Shortcut function | The last sterilization program performed will be remembered and will be easily accessible after turning on the autoclave. |
| Autostart function | With this function, you can start the appropriate program at a previously set time. You can set the delayed start of the program to a specific date and time or any number of hours later. |
| Preheating function | When this function is enabled, the device preheats before the program or parameters are set. |
| Keep warm function | The autoclave will heat the chamber and start the steam generator to maintain a constant, warm temperature (for a maximum of 8 hours). This allows for shortening the time of each sterilization cycle. |

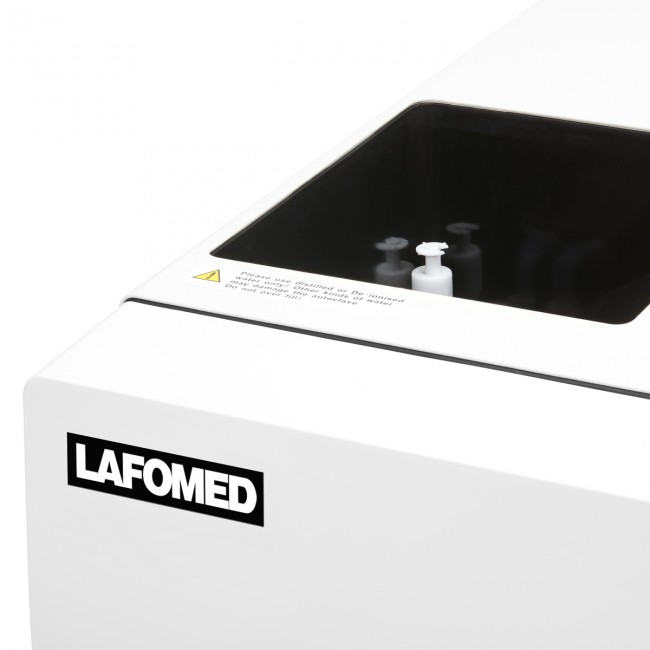

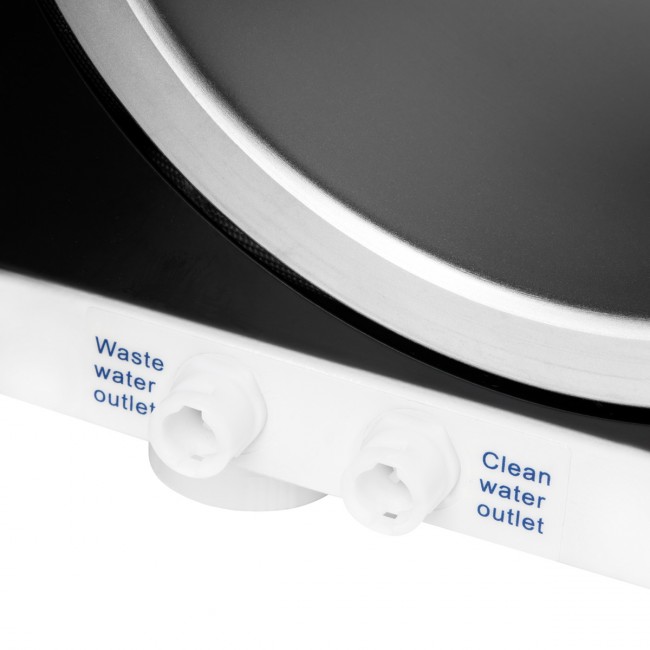

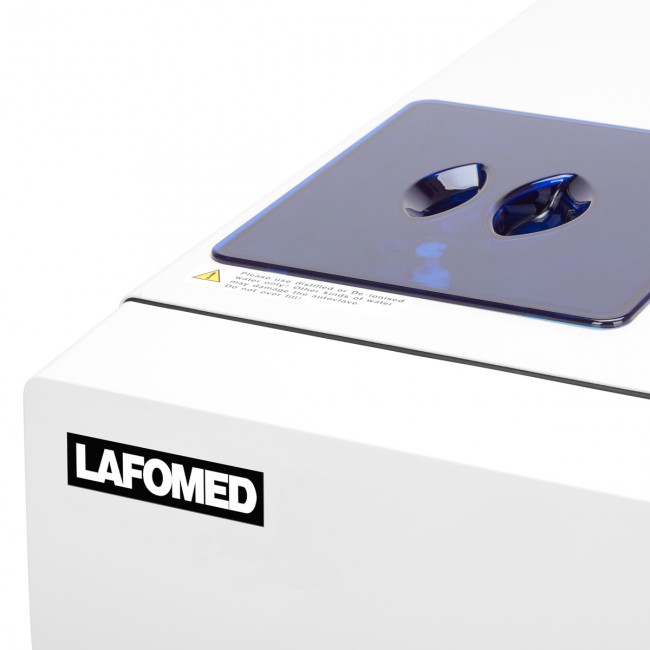

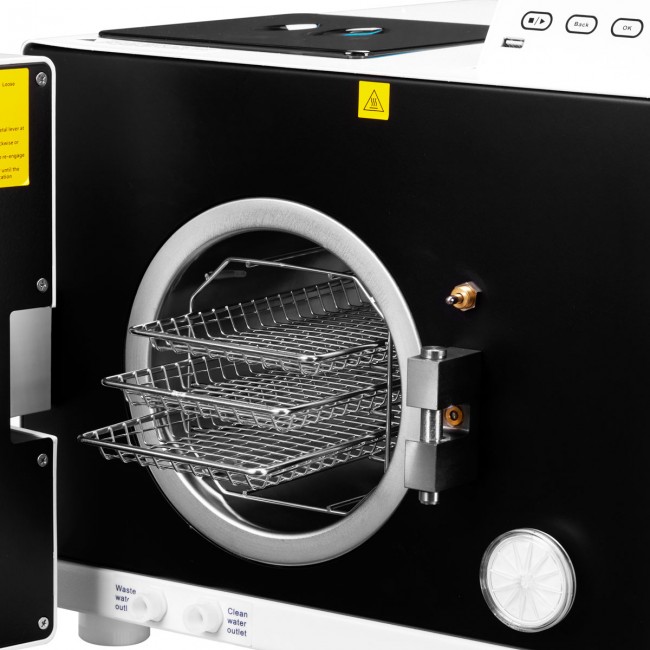

| Built-in tanks for clean and used water | The capacity of each container is 2.5 liters. The clean water tank is designed for distilled or deionized water, which will be used for sterilization. The presence of the used water tank means that we do not need to remember about the external container. The drain for used (and clean) water is located at the front of the device. |
| Self-diagnosis system | Effective protection against damage. |
| 304 grade stainless steel chamber | This makes it extremely durable and more aesthetic, and proves the high quality of the device. |

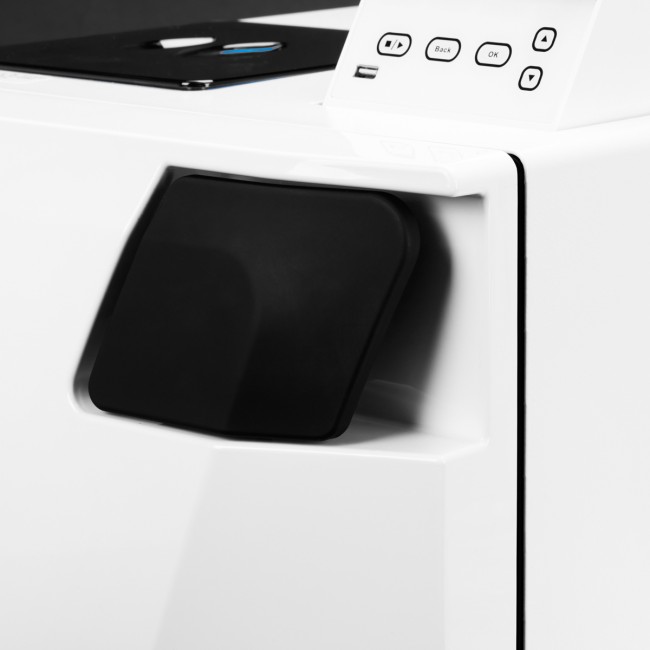

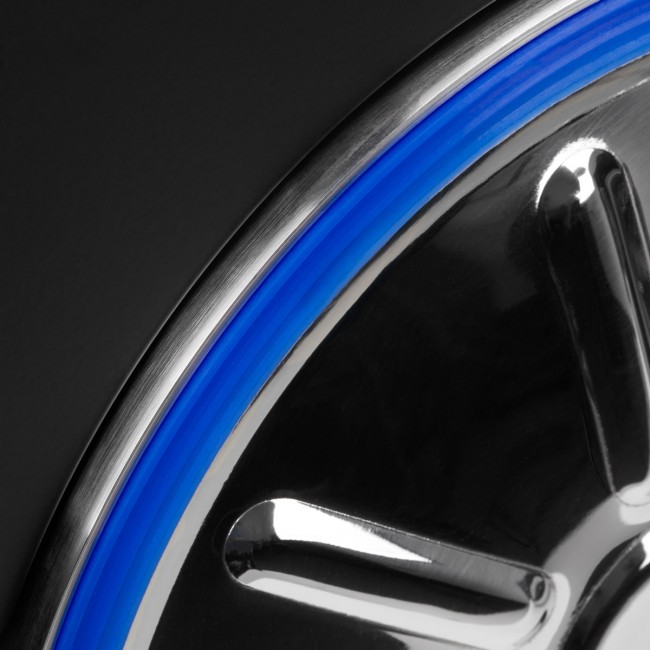

| Double door lock | Advanced door security system mechanically and electronically. |
| Meets Sanepid requirements | There is no need to register with UDT. |
| High quality bacterial filter | Replaceable every 150 cycles, filters available in our store. |
| Technical passport | The set includes a passport worth PLN 250. |
| Guarantee | 36 months warranty |
Watch a video with information on using medical autoclaves:
Technical data:
| Certificates and standards | CE1023, ISO13485, BS EN 13060:2014+A1:2018 |
| Power | 2.4 kW |
| Tension | 230V |
| Frequency | 50Hz |
| Maximum operating temperature | 137℃ |
| Maximum operating pressure | 0.21-0.23 MPa |
| Design pressure | -0.1 / 0.27 MPa; |
| User program | All parameters |
| Time control | 4-60 min |
| Drying time | 1-25min |
| Vacuum times | 1-10 times |
| Automatic programs | - 134°C Uniform - 134°C Porous - 134°C Concave - 121°C Uniform - 121°C Porous - 121°C Concave - 135°C Prions - Cleaning -Vacuum test - Bowie & Dick / Helix Test |
| Chamber capacity | 18L |
| External dimensions | 65cm x 52cm x 42cm |
| Package dimensions | 73cm x 58cm x 50cm |
| Chamber dimensions | ⌀ 25 cm; depth 31 cm |
| Chamber material | Stainless steel 304 |
| Net weight | 53kg |
| Weight with packaging | 61kg |

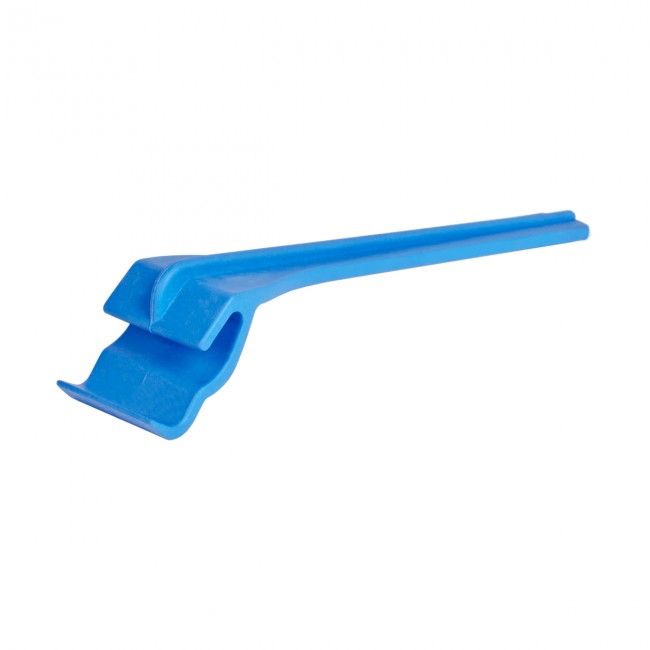

The set includes: Autoclave, drain hose, 3 trays, power cord, tray stand, tray removal handle, fuse, operating instructions in Polish, technical passport.
Watch a video comparing the autoclave series available in our store:
Specification of Lafomed Compact Line LFSS18AD autoclave with printer 18 L class B medical
| Product Details | |
|---|---|
| Product Code: | 122514 |
| Weight | 63.00kg |
