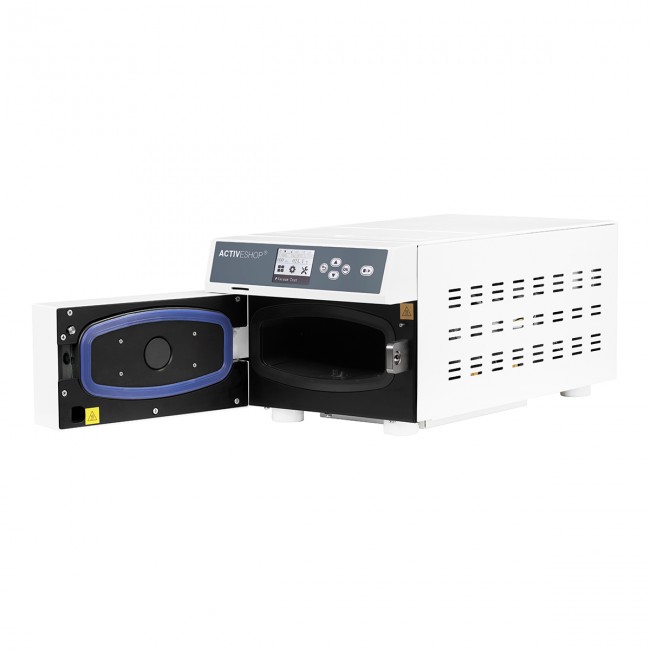

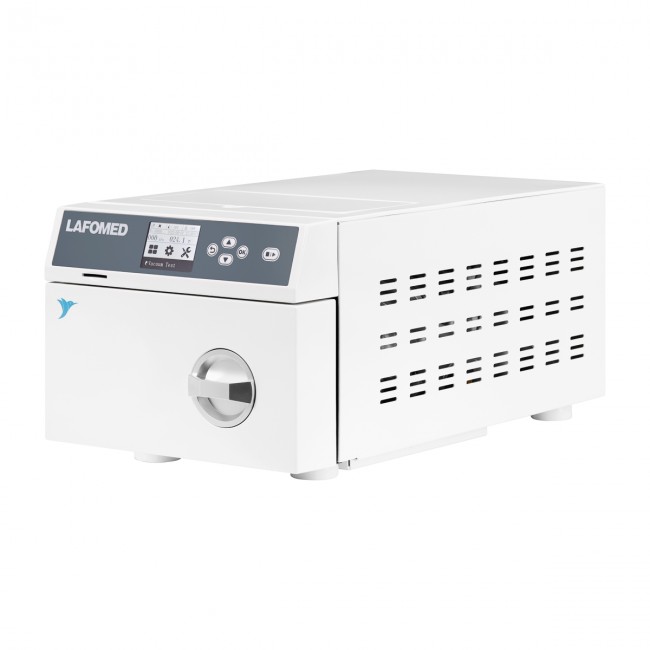

Lafomed autoclave LFSS03AA LCD 3 L class B medical (Product Code: 132695)
Description of Lafomed autoclave LFSS03AA LCD 3 L class B medical
High quality autoclaves
Lafomed is a brand of high-class autoclaves that have gained recognition in over 50 countries around the world. The autoclaves meet all medical standards and directives. These devices are characterized by low failure rate. Their microprocessors use the latest generation of electronic modules. Lafomed autoclaves are characterized by high efficiency and durability, and their operation is simple and intuitive.
INTENDED USE:
Autoclave, model LFSS03AA LCD is designed for sterilization of invasive medical devices. The device allows to prevent cross-infection. The autoclave is especially designed for hospital departments, dental, ophthalmological and biological research institutes. It is designed for sterilization of surgical instruments, dental tools, syringes, etc. It is used for sterilization of packaged (single- and multi-layer) and unpackaged solid products, porous products and hollow objects in accordance with EN 13060:2004+A2:2010. The autoclave can also be used for non-medical and veterinary applications.
Warning: The device is not intended for sterilizing liquid substances.
Top-class autoclave
The Lafomed LFSS03AA 3 L autoclave is particularly recommended for hospital departments, dentistry and ophthalmology, as well as for Biology Institutes conducting research projects. It is perfect for hairdressing and beauty salons, tattoo studios or aesthetic medicine salons. The device is designed to sterilize both medical and non-medical tools. Thanks to the cooperation of the technical departments of Lafomed and ActiveBeautyStore, a device was created that will satisfy the most demanding users. Sterilization with the highest medical class B autoclave ensures full effectiveness and safety.
Functionality you will appreciate
The autoclave has an LCD display and an SD memory card slot , on which you can save the results of the performed cycle. It has 7 fully automatic programs ; 4 sterilization programs, 2 test programs and a drying program. The menu is intuitive, and the user-friendly interface is in Polish. The preheating and heat maintenance functions will also be useful. The Lafomed Touch 3L autoclave is characterized by the availability of quick sterilization programs. The shortest cycle for sterilizing tools lasts 6 minutes including drying, and for packaged ones only 8 minutes. The device has a built-in tank for clean (distilled) water, which is used for sterilization, with the possibility of draining dirty water from the front or back of the device. The self-diagnosis system will effectively protect against damage and allows you to maintain the durability of the device. The autoclave meets all the requirements of the Sanitary Inspectorate, and after purchasing this model there is no need to report it to the Office of Technical Inspection.
Automatic sterilization programs
| Sterilization programs | Load type | Total cycle time* |
| 134° Fast | Packaged and unpacked; solid, textile, recessed | 8 minutes |
| 134° Universal | Packaged and unpacked; solid, textile, recessed | 10 minutes |
| 121° Universal | Packaged and unpacked; solid, textile, recessed | 28 minutes |
| 134° Lite | Unwrapped; solid (to be used immediately after sterilization) | 6 minutes |
*Refers to the time after the chamber has heated up.
Extendable warranty (24+12)
The Lafomed autoclave is covered by a 24-month warranty . It is worth mentioning here that the warranty is not dependent on the number of autoclave cycles. It is possible to extend the warranty for another 12 months provided that a paid technical inspection is carried out at an authorized service center before the basic warranty expires. This is an option that applies to devices purchased from 22.08.2022. Additionally, a free technical passport is also included!
Nationwide network of authorized LAFOMED service centers
We are pleased to inform you about the introduction of changes in the servicing of LAFOMED autoclaves. In order to meet the requirements and needs of our customers, from September 2, 2024, we are launching a nationwide network of authorized LAFOMED service centers. The services are now available in every province, where you will be able to leave your device for repair or inspection.
Authorized service centers offer:
- annual inspections
- performing necessary warranty and post-warranty repairs
- possibility of performing the above services at the client's place (on site) *
- replacement devices for the duration of repairs *
- fast and effective action
Please contact your central service to find out where your nearest service point is.
* Service available at selected sites.
Specification:
| Class B medical | This is the highest class of autoclaves that allow for the most effective sterilization of unpackaged and packaged items, regardless of the type of tools. |
| High quality workmanship | Autoclave manufactured according to ISO 13485 standard and CE 1023 certified. |
| Capacity 3L | It is a small but very practical autoclave. Unlike cassette autoclaves, 3-liter Lafomed autoclaves have a water tank, have the option of adjusting the drying time, and the chamber is made of stainless steel. They also have lower power consumption, so they are more economical. |
| Small dimensions | It takes up little space and is easier to transport than larger autoclaves. |
| Sterilization of loose or packaged instruments | A class B autoclave allows for the sterilization of both unpackaged and packaged instruments (solid or hollow). |

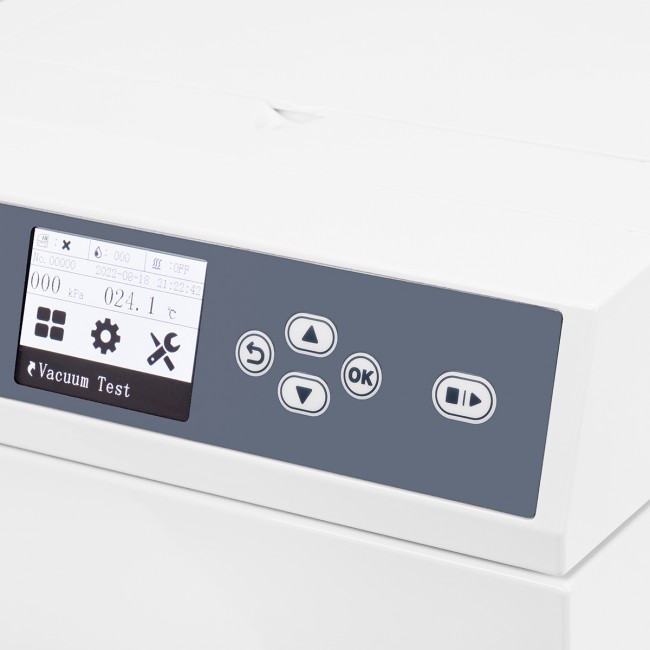

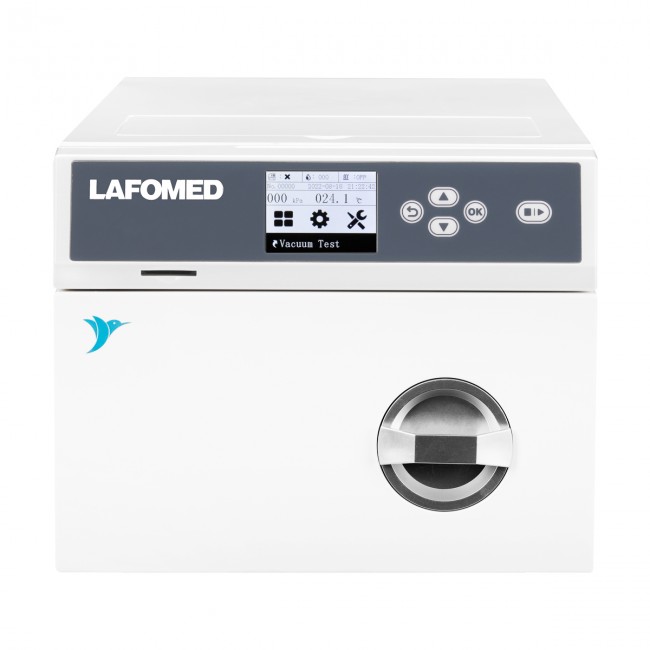

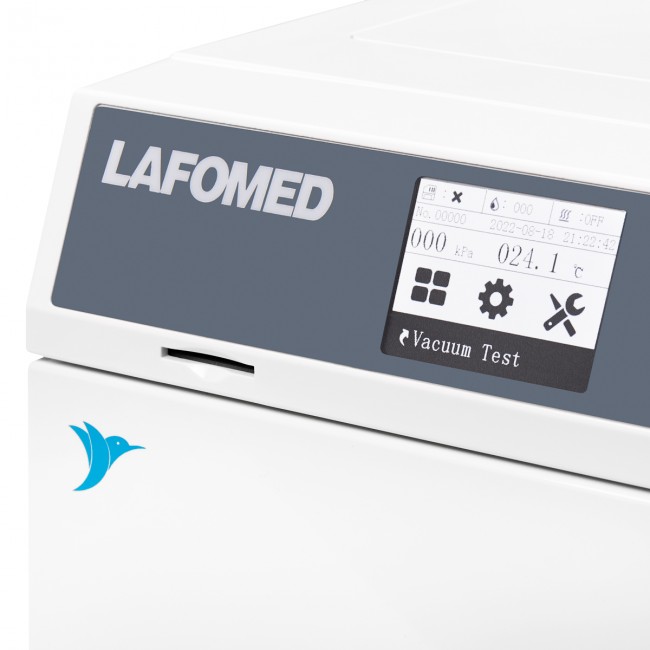

| LCD display | Indicates time, temperature, pressure and cycle progress. |
| Easy and efficient operation | The intuitive menu allows for quick program selection or parameter setting, and the user-friendly interface is in Polish . |
| 7 automatic programs | 4 sterilization programs, 2 test programs; Bowie & Dick and vacuum test, and a drying program. |
| Short sterilization | The fastest program takes 6 minutes including drying, and for packaged tools just 8 minutes. |
| SD memory card reader | Save your data digitally and don't worry about losing or destroying the valuable evidence you need. |
| Preheating and keeping warm function | The device will begin to heat up as soon as it is turned on and will remain warm until it is turned off, thereby reducing sterilisation time. |

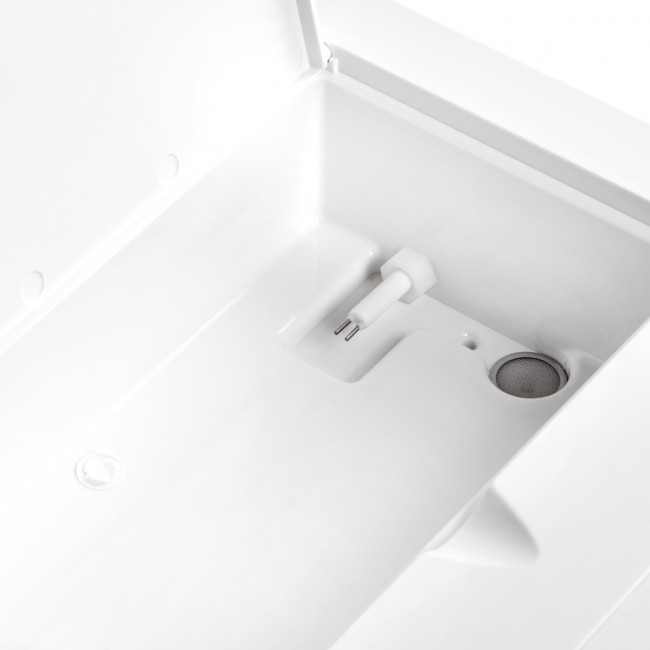

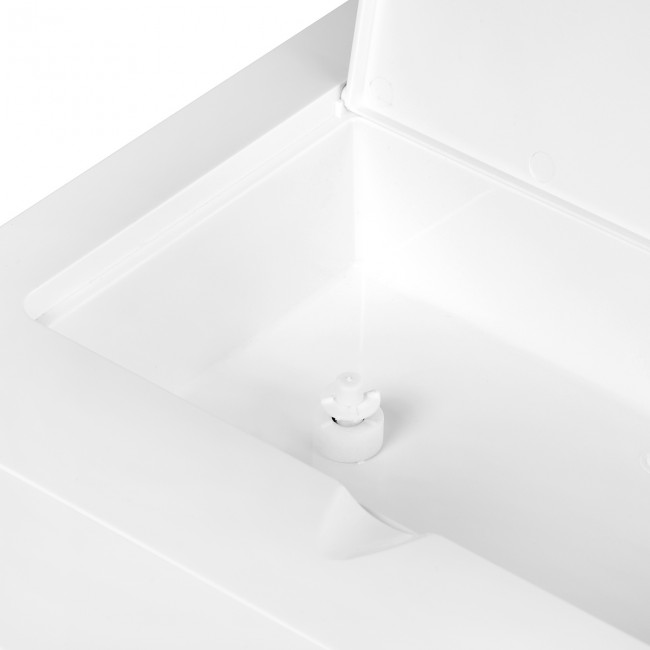

| Built-in clean water tank | This is a tank for distilled or deionized water that is used for sterilization. |

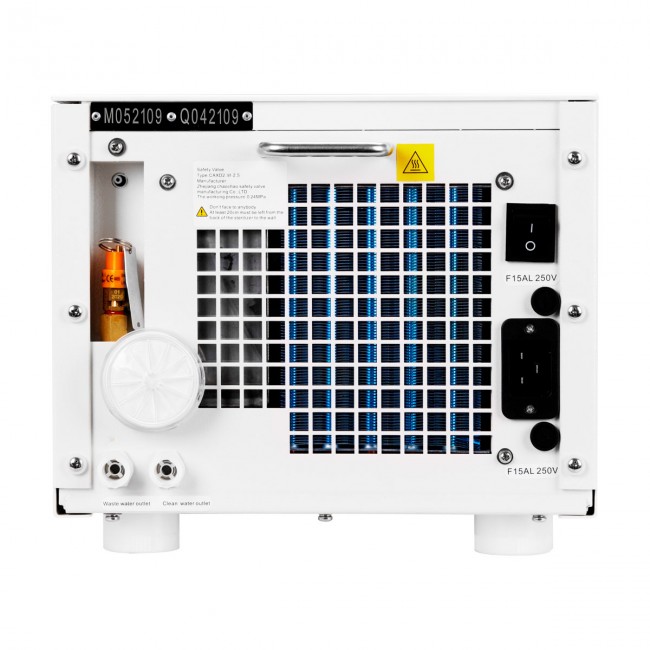

| Possibility of draining waste water from the front or back of the device | The used water will flow through the selected channel to the external tank that we placed next to it. |
| Self-diagnosis system | Effective protection against damage. |
| 304 grade stainless steel chamber | This makes it extremely durable and more aesthetic, and proves the high quality of the device. |

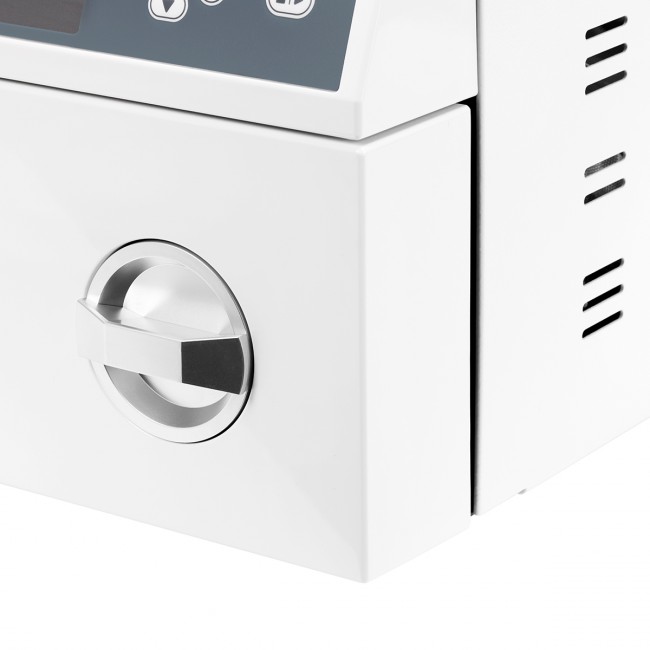

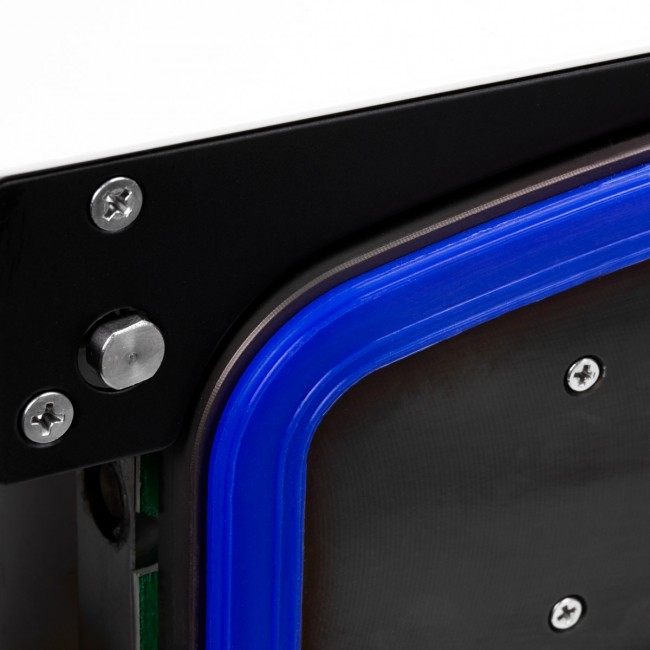

| Double door lock | Advanced door security system mechanically and electronically. |
| Meets Sanepid requirements | There is no need to register with UDT. |
| High quality bacterial filter | Replaceable every 150 cycles, filters available in our store. |
| Technical passport | The set includes a passport worth PLN 250. |
| Guarantee | 24-month warranty with the option to extend for another 12 months. |
Watch a video with information on using medical autoclaves:
Technical data:
| Certificates | CE1023, ISO13485 Standard PN-EN 13060: 2004 + A2: 2010 |
| Power | 2.9 kW |
| Tension | 220-240V |
| Frequency | 50Hz |
| Maximum operating temperature | 137℃ |
| Maximum operating pressure | 0.24 MPa |
| Design pressure | -0.1 / 0.27 MPa; |
| Safety valve set pressure | 0.24 MPa |
| Safety valve opening pressure | 0.24MPa ~ 0.26MPa |
| Clean water tank container | 1 Litre |
| Time control | 4-60 min |
| Drying time | 1-25min |
| Vacuum times | 1-10 times |
| Automatic programs | - 134 ℃ Fast - 134 ℃ Universal - 134 ℃ Full - 121 ℃ Universal -Vacuum test - Bowie&Dick/Helix Test - Drying |
| Chamber capacity | 3 Liters |
| Device dimensions | 24.5x29x59cm |
| Package dimensions | 30x34x65cm |
| Chamber dimensions | 19 x 7.5; depth 32 cm |
| Chamber material | Stainless steel 304 |
| Net weight | 20kg |
| Weight with packaging | 24kg |

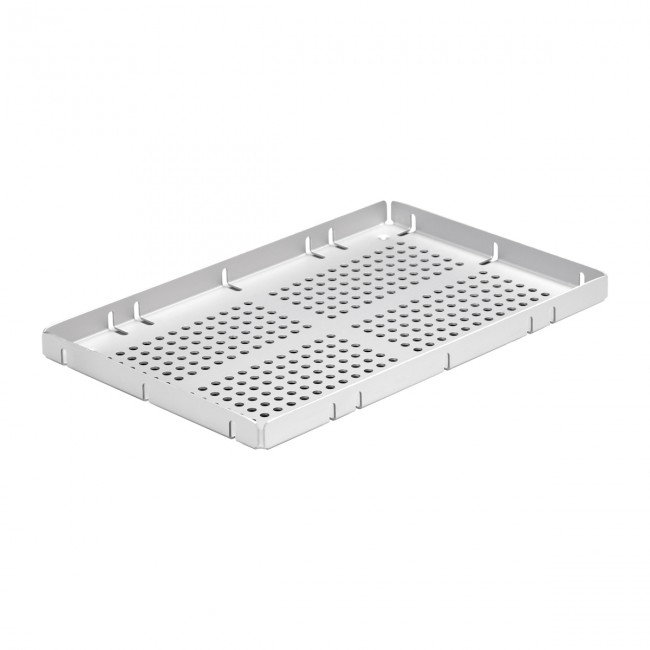

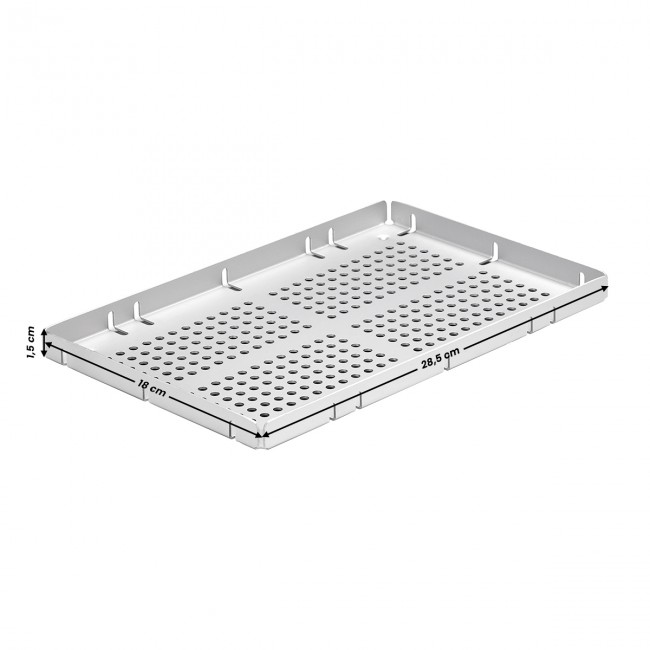

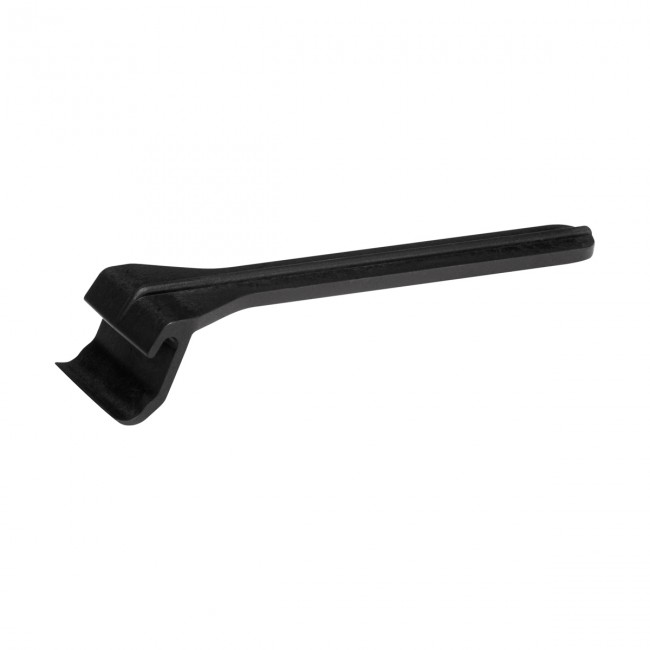

The set includes: Autoclave, drain hose, tray, power cord, tray stand, tray removal handle, operating instructions in Polish, technical passport.
Watch a video comparing the autoclave series available in our store:
Specification of Lafomed autoclave LFSS03AA LCD 3 L class B medical
| Product Details | |
|---|---|
| Product Code: | 132695 |
| Weight | 30.00kg |
